Vertex Connect Connect Vertex Path


Mode: Edit Mode
Menu: Mesh ‣ Vertices ‣ Connect Vertex Path
Hotkey: J

This tool connects vertices in the order they are selected, splitting the faces between them.

When there are only two vertices selected, a cut will be made across unselected faces, a little like the knife tool; however, this is limited to straight cuts across connected faces.

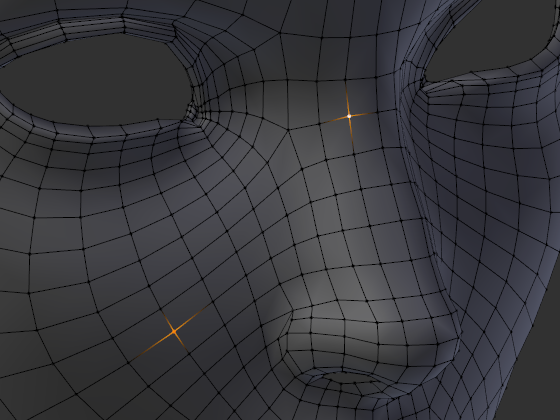

Figure 1: Two disconnected vertices.

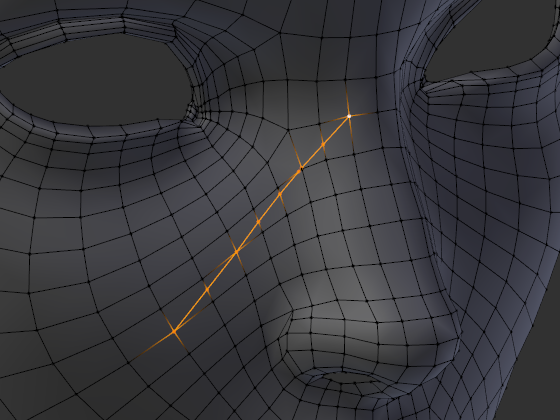

Figure 2: Result of connecting.

Running a second time will connect the first/last endpoints.

When many vertices are selected, faces will be split by their selected vertices.

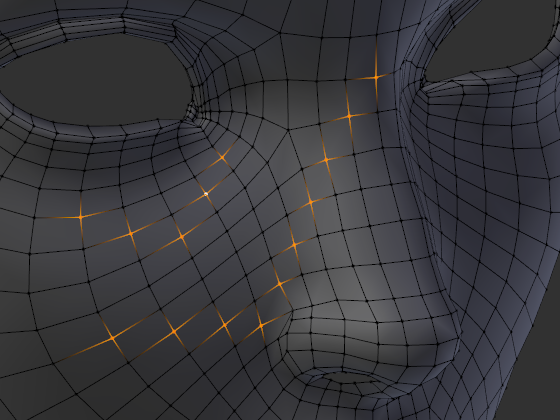

Figure 3: Before.


Figure 4: After.

Vertices not connected to any faces will create edges, so this can be used as a way to quickly connect isolated vertices too. Connect Vertices


Mode: Edit Mode
Menu: Mesh ‣ Vertices ‣ Connect Vertices

This tool connects selected vertices by creating edges between them and splitting the face.

This tool can be used on many faces at once.


Figure 5: Vertices before connecting.


Figure 6: After connecting vertices.


Figure 7: Resulting face pair.

The main difference between this tool and Connect Vertex Path, is this tool ignores selection order and connects all selected vertices that share a face.
